The temperature monitoring system for 10kV Box-type substation also has data recording and analysis functions. Chongqing dry-type transformers can conduct trend analysis through long-term accumulation of temperature data, helping to predict the health status of the equipment. By reviewing and analyzing data, potential faults and hidden dangers of equipment can be identified in a timely manner, and maintenance and replacement can be carried out in advance to avoid sudden failures and improve the service life and reliability of the equipment.

The temperature monitoring system for packaged substation not only improves the security of the equipment, but also helps management personnel to maintain the equipment more efficiently. By accurate temperature data combined with other operating parameters, we can have a more comprehensive understanding of the operating status of box-type transformer and make more scientific and reasonable decisions.

Certainly! Below is a detailed 1000+ word article in English about 10kV Box-type Substation, covering its features, applications, advantages, and key components.

Understanding the 10kV Box-type Substation: Features, Applications, and Benefits

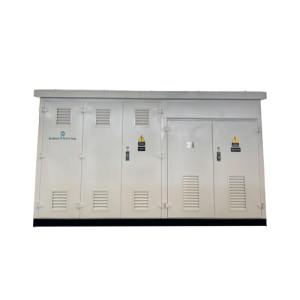

A 10kV Box-type Substation is a compact, prefabricated electrical substation designed for medium-voltage power distribution. It integrates high-voltage (HV) and low-voltage (LV) equipment, transformers, and control systems into a single, enclosed structure. These substations are widely used in urban, industrial, and rural areas due to their efficiency, space-saving design, and ease of installation.

This article explores the key aspects of 10kV Box-type Substations, including their structure, working principles, applications, and advantages over traditional substations.

1. Structure and Key Components

A 10kV Box-type Substation consists of several critical components housed within a robust, weatherproof enclosure. The main parts include:

1.1 High-Voltage (HV) Switchgear

The HV compartment contains circuit breakers, disconnect switches, and protection devices for the 10kV incoming power supply.

Common configurations include ring main units (RMU) or vacuum circuit breakers for safe operation.

1.2 Distribution Transformer

A dry-type or oil-immersed transformer steps down the 10kV voltage to 400V (or other required LV levels).

Dry-type Transformers are preferred for indoor use due to their fire-resistant properties.

1.3 Low-Voltage (LV) Switchgear

The LV compartment includes circuit breakers, meters, and protection devices for outgoing power distribution.

It ensures stable power supply to end-users while preventing overloads and short circuits.

1.4 Enclosure and Auxiliary Systems

The steel or composite enclosure provides protection against environmental factors (dust, rain, corrosion).

Additional features may include ventilation, lighting, fire suppression, and remote monitoring systems.

2. Working Principle

The 10kV Box-type Substation operates as follows:

1. Power Input: The 10kV supply enters through the HV switchgear, where it is controlled and protected.

2. Voltage Transformation: The transformer reduces the voltage to 400V (or other LV levels).

3. Power Distribution: The LV switchgear distributes power to downstream loads (buildings, factories, etc.).

4. Monitoring & Protection: Sensors and relays monitor parameters like current, voltage, and temperature to ensure safe operation.

3. Applications of 10kV Box-type Substations

These substations are versatile and used in various scenarios:

3.1 Urban Power Distribution

Ideal for densely populated areas where space is limited.

Commonly installed near residential complexes, shopping malls, and office buildings.

3.2 Industrial Facilities

Provides reliable power for factories, mines, and manufacturing plants.

Can be customized with higher-capacity transformers for heavy machinery.

3.3 Renewable Energy Integration

Used in solar/wind farms to step up or down voltage before grid connection.

3.4 Rural Electrification

Deployed in remote areas with minimal infrastructure due to their plug-and-play design.

4. Advantages Over Conventional Substations

Compared to traditional brick-and-mortar substations, 10kV Box-type Substations offer several benefits:

4.1 Compact and Space-Saving

Prefabricated design reduces land requirements.

Can be installed indoors or outdoors.

4.2 Quick Installation

Factory-tested and pre-assembled, reducing on-site construction time.

4.3 Enhanced Safety

Enclosed structure prevents unauthorized access and protects against environmental hazards.

4.4 Cost-Effective

Lower installation and maintenance costs compared to conventional substations.

4.5 Scalability

Modular design allows for easy capacity upgrades.

5. Challenges and Considerations

Despite their advantages, 10kV Box-type Substations have some limitations:

Cooling Requirements: Proper ventilation is needed to prevent overheating.

Maintenance Accessibility: Some designs may require partial disassembly for repairs.

Environmental Conditions: Extreme temperatures or corrosive environments may affect longevity.

6. Future Trends

With advancements in smart grid technology, future 10kV Box-type Substations may include:

IoT-enabled monitoring for real-time diagnostics.

Energy storage integration for microgrid applications.

Eco-friendly materials to reduce environmental impact.

The 10kV Box-type Substation is a reliable, efficient, and flexible solution for modern power distribution needs. Its compact design, ease of installation, and adaptability make it a preferred choice for urban, industrial, and renewable energy projects. As technology evolves, these substations will continue to play a crucial role in smart and sustainable power systems.

By understanding their structure, benefits, and applications, engineers and planners can make informed decisions when implementing 10kV Box-type Substations in power networks.
